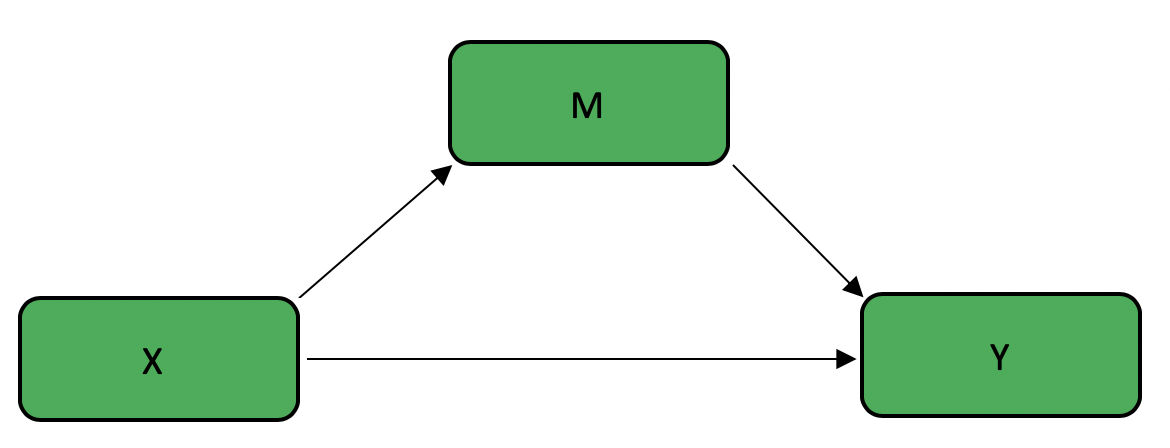

class: center, middle, inverse, title-slide # Bootstrapped Mediation Analyses in R ### Jeffrey Kravitz ### 5/15/2019 --- # Overview ## The aim of this tutorial is to: - Review the concepts of mediation, moderation, and bootstrapping - Demonstrate how to complete bootsrapped mediation analyses in R - Generate hypothetical datasets to explore various possible mediation outcomes --- ## Explanatory Value of Analyses - Simple statistical analyses like ANOVAs allow us to establish whether or not a relationship exists between two variables - These analyses are limited, however, in that they *only* discern whether or not this relationship exists - More complex statistical analyses such as **Mediation** and **Moderation** go beyond this, and allow us to test theoretically rich ideas --- .pull-left[ ## Mediation - Mediation analyses help us examine the * **mechanism** * of the relationship between two variables - Mediation answers the question of * **how** * variables are related - A mediator variable * **explains the relationship** * between an independent variable and a dependent variable ] .pull-right[ ## Moderation - Moderation analyses help us examine the * **conditions** * in which two variables are related - Moderation answers the question of * **when** * variables are related - A moderator variable * **affects the strength and/or direction** * of the relationship between an independent variable and a dependent variable ] --- ## Bootstrapping - Bootstrapping is a statistical method that utilizes random resampling with replacement to estimate a population parameter - This technique samples from a given dataset to estimate a parameter when it would otherwise be impossible or impractical to do so - In this way, the dataset is treated as the population, and each random sample aims to replicate a potential score within the true population - The amount of resamples varies, but usually falls between 1,000 and 10,000 - One advantage of the bootstrap method is that it produces confidence intervals for your statisitcal estimate --- ## Mediation: An Example - Consider a case in which we know that mindfulness increases happiness in people - Although there is clear evidence that mindfulness increases happiness, research has not yet explored why this is the case - Suppose we think that mindfulness decreases stress, which in turn increases happiness - In other words, we think that mindfulness only indirectly affects happiness *by means of* reducing stress. --- ## Mediation Effects - X = independent variable - Y = dependent variable - M = mediator variable  --- ## Mediation Effects - The **total effect** is the total effect of X on Y, with no consideration of mediator variables - This is also known as the **c path**  --- ## Mediation Effects - The **direct effect** is the effect of X on Y after removing the contribution of M - This is known as the **c' path**  --- ## Mediation Effects - The effect of X on M is known as the **a path** - The effect of M on Y is known as the **b path** - The **indirect effect** is the effect of X on Y *through M* - This is equivalent to the product of the a path and the b path  --- ## Mediation in R: *Mediation Package* - This tutorial explains how to use the `mediate` function in the `mediation` package, and how to interpret the resulting statistics - The first step to conducting mediation analyses is to install and load the `mediation` package: ```r install.packages("mediation") library(mediation) ``` --- ## Mediation in R: Structure ```r X <- Y <- M <- model.m <- lm(M ~ X) model.y <- lm(Y ~ X + M) library(mediation) mediation_results <- mediate(model.m = model.m, model.y = model.y, sims = boot = TRUE, mediator = " ", treat = " ") summary(mediation_results) ``` --- ## Mediation in R: Defining Variables ```r X <- Y <- M <- ``` - The following is a dataset generated following the previous example of mindfulness, happiness, and stress ```r X_mindfulness <- c(rep(0,50),rep(1,50)) Y_happiness <- c(rep(3,25),rep(4,25),rep(5,25),rep(6,25)) M_stress <- c(rep(3,25),rep(4,25),rep(5,25),rep(6,25)) ``` - This dataset models a full mediation --- ## Mediation in R: Defining Models - To use the `mediate` function, we must first define two linear models: - `model.m`, predicting M from X - `model.y`, predicting Y from X and M ```r model.m <- lm(M ~ X) model.y <- lm(Y ~ X + M) ``` - In our practical example, it would look like this: ```r model.m <- lm(M_stress ~ X_mindfulness) model.y <- lm(Y_happiness ~ X_mindfulness + M_stress) ``` --- ## Mediation in R: Mediate - Next, we call the `mediate` function with the following arguments: - `model.m` = `model.m` - `model.y` = `model.y` - `sims` = *the number of resamples that you want to use* - `boot` = `TRUE` - `mediator` = *your mediator variable, in quotes* - `treat` = *your independent variable, in quotes* ```r library(mediation) mediation_results <- mediate(model.m = model.m, model.y = model.y, sims = boot = TRUE, mediator = " ", treat = " ") summary(mediation_results) ``` --- ## Mediation in R: Mediate ```r library(mediation) mediation_results <- mediate(model.m = model.m, model.y = model.y, sims = boot = TRUE, mediator = " ", treat = " ") summary(mediation_results) ``` - In our example, it would look like this: ```r library(mediation) full_mediation <- mediate(model.m = model.m, model.y = model.y, sims = 500, boot = TRUE, mediator = "M_stress", treat = "X_mindfulness") summary(full_mediation) ``` ``` ## Loading required package: MASS ``` ``` ## Loading required package: Matrix ``` ``` ## Loading required package: mvtnorm ``` ``` ## Loading required package: sandwich ``` ``` ## mediation: Causal Mediation Analysis ## Version: 4.4.7 ``` --- ## Mediation in R: Results - Let's look at the results for our mediation: ```r summary(full_mediation) ``` ``` ## ## Causal Mediation Analysis ## ## Nonparametric Bootstrap Confidence Intervals with the Percentile Method ## ## Estimate 95% CI Lower 95% CI Upper p-value ## ACME 2.00e+00 1.80e+00 2.2 <2e-16 *** ## ADE -2.28e-15 -4.06e-15 0.0 0.91 ## Total Effect 2.00e+00 1.80e+00 2.2 <2e-16 *** ## Prop. Mediated 1.00e+00 1.00e+00 1.0 <2e-16 *** ## --- ## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 ## ## Sample Size Used: 100 ## ## ## Simulations: 500 ``` --- ## Mediation in R: Results - `ACME` is the Average Causal Mediation Effect, or the **indirect effect** (ab path) - `ADE` is the Average Direct Effect, or the **direct effect** (c' path) - `Total Effect` is the **total effect** (c path) - Our output also gives us confidence intervals and *p* values for each of these effects  - As we see above, we have a full mediation denoted by our significant `ACME` and non-significant `ADE` --- ## Mediation in R: Partial Mediation - We can also examine a case in which there is partial mediation instead of full mediation ```r # Partial Mediation X_mindfulness <- c(rep(0,50), rep(1,50)) Y_happiness <- c(rep(3,25), rep(4,25), rep(5,25), rep(6,25)) M_stress <- c(rnorm(25,3,1), rnorm(25,4,1), rnorm(25,5,1), rnorm(25,6,1)) model.m <- lm(M_stress ~ X_mindfulness) model.y <- lm(Y_happiness ~ X_mindfulness + M_stress) library(mediation) partial_mediation <- mediate(model.m = model.m, model.y = model.y, sims = 500, boot = TRUE, mediator = "M_stress", treat = "X_mindfulness") summary(partial_mediation) ``` --- ## Mediation in R: Partial Mediation ```r summary(partial_mediation) ```  - As we can see above, we have a significant indirect effect - However, the direct effect is still significant - This signifies a partial mediation
